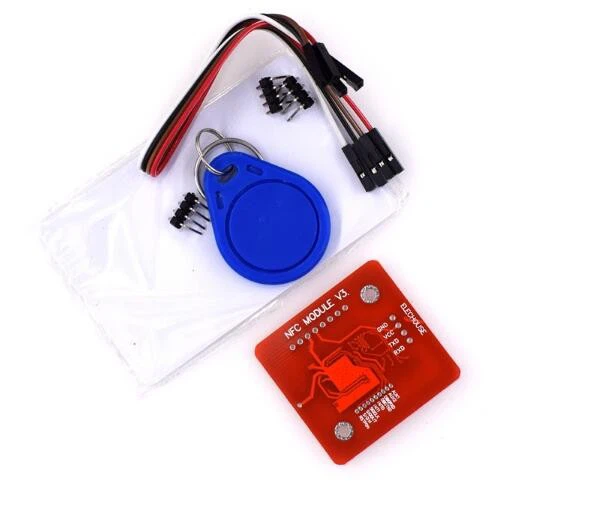

NFC PN532 V3 Module

Kumenyekanisha ibicuruzwa:

Iyi NFC Moudle yubatswe hafi ya NXP PN532.

NXP PN532 irazwi cyane mukarere ka NFC. Kandi isosiyete itanga inyandiko nyinshi zikoranabuhanga zifasha abiteza imbere. Twateje imbere iyi module dushingiye ku nyandiko yemewe. Kugira ngo ibintu byoroshe, twubaka kandi isomero kuriyi module.

Ibipimo by'ibicuruzwa:

1. Shigikira 112, SPI na HSU (Umuvuduko mwinshi UART)

2. Inkunga ya RFID umusomyi / umwanditsi

Mifare 1k 4k Ultralight, hamwe namakarita ya DesFire

Ikarita ya ISO / IEC 1443-4 nka CD97BX, CD itara, DesFire, P5CN072 (SMX)

Udushya. Ikarita ya zahabu nka karita ya IRT5001

Ikarita ya FeliCa nka RCS _ 860 na RCS _ _854

3. Gucomeka no gukina, Arduino irahuye

4. Yubatswe muri PCB Antenna, hamwe na 5cm ~ 7cm intera y'itumanaho

5. Kuri - urwego rwimuka, Bisanzwe 5V TTL kuri 12C na UART, 3.3V TTL SPI.

6. Kora nkumusomyi / umwanditsi wa RFID

7. Kora nka 1443-Ikarita cyangwa ikarita isanzwe

8. Shigikira NFC hamwe na terefone ya Androild

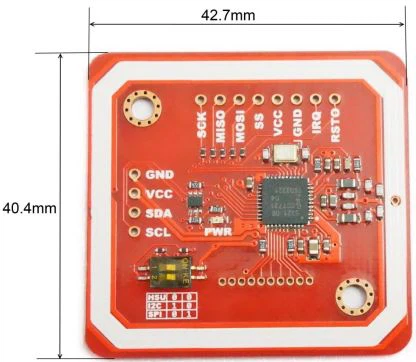

9. Ingano nto: 43mm * 41mm * 4mm

Hafi yo kumena pin 10 zose za NXP532 kuriyi module. Abakoresha barashobora guhuza byoroshye no gukina. Hamwe na Arduino Sensor Shield, biroroshye cyane gucomeka no gukina. Ariko, niba abakoresha bashaka gukoresha indi interface nka UART cyangwa SPI, iyi module nayo yorohereza guhuza izo pin.
